SPECIFICATIONS

Brand Name: yaocaixing

Brightness Of White Balance: 6000 CD

D/C: 5V

Display Function: Video

Driver Mode: 1/4 scan

LED Lamps: 3535

Module Resolution: 32*16

Package: smd3535

Pitch: 8mm

Pixels square: 15625

Place of Origin: Guangdong, China

Size: 256mm*128mm

Tube Chip Color: FULL COLOR

Type: outdoor

Usage: Outdoor

Welcome  to  YaoCaixing Electronic store!







Let's feel the visual feast of Yao caixing!



Yao Caixing  always do our best to satisfy all customer’s requests and wishes.



We welcome challenging projects and any possibility to cooperate with our clients and help improve their business.







Yao Caixing firmly believe that:

Production of good quality products, customers can use a long time;

The service is considerate and the brand is more profound.

Long after sales service, future cooperation will be better.













Specification



Module Parameter
Size	256mm(H)×128mm(H)
Module Resolution	32(H)×16(W)
Pitch	8mm
Density	15625pixels/m²
LED Lamps	SMD3535(Customizable Nationstar lamp)
Driver IC	Universal chip(Customizable  MBI5166/MBI5124)
Module Refresh	1920HZ
Mask	Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution	128(H)×128(W)  or 96(H)×96(W)
Cabinet Size	1024mm(H)×1024mm(W) or 768*768
Cabinet Weight	30kg or 20KG
Driver Mode	Dynamic 1/4 scan , constant current driving
Cabinet Power	≤300w
Cabinet Thickness	≤75mm+5mm
Electricity Parameter
Optical Ratings
Brightness Of  White Balance	≥6000cd/m²
View Angle	140 degree ( horizontal)  140degree(vertical)
View Distance	4m-20m
Gray Scale	65536
Display Color	3-in-1 RGB
Brightness Adjustment	100 levels
Power Supply
Operation Power	AC100-240V 50-60HZ  Switch-able
Maxim Power Consumption	1200w/m²
Average Power Consumption	700 w/m²
Control System
Correction Scale Level	16bits
Screen Refresh Frequency	920Hz
Gamma Correction	-5.0—5.0
Support Input	HDMI,DVI,VGA,RJ45,USB,Serial Port
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200,1920×1080
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet
Reliability
Temperature	Storage:-35℃-+80℃  ; Operation :-25℃-+45℃
Humidity	Storage:10-70% RH   ; Opeartinon:10--60% RH
Operating Life	≥100,000 hours
MTBF	≥5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP65
Out of Control Pixel Rate	0.03%

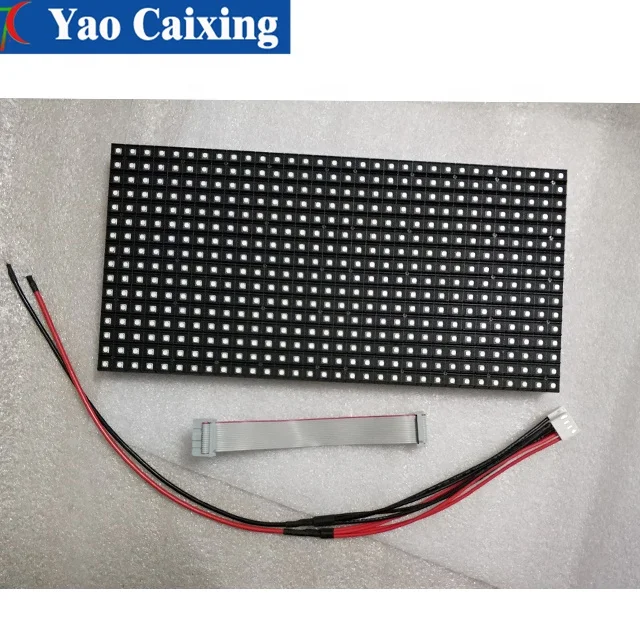

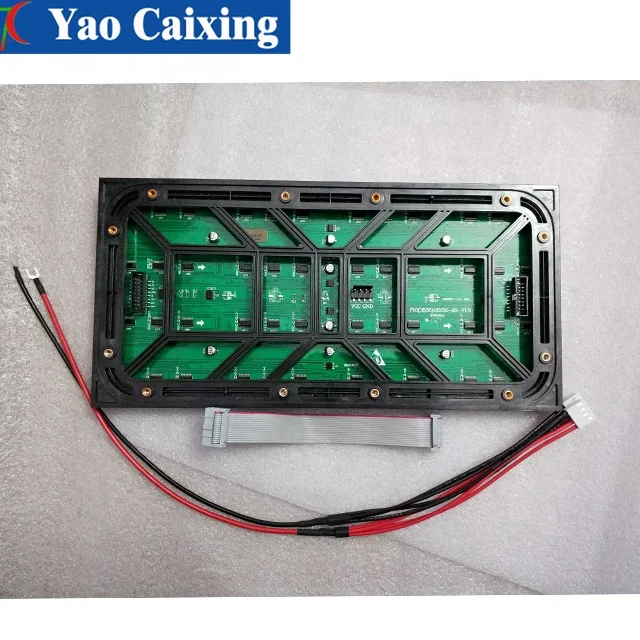

Each module will we send 1 pcs flat cable ,power line and waterproof ring for free.

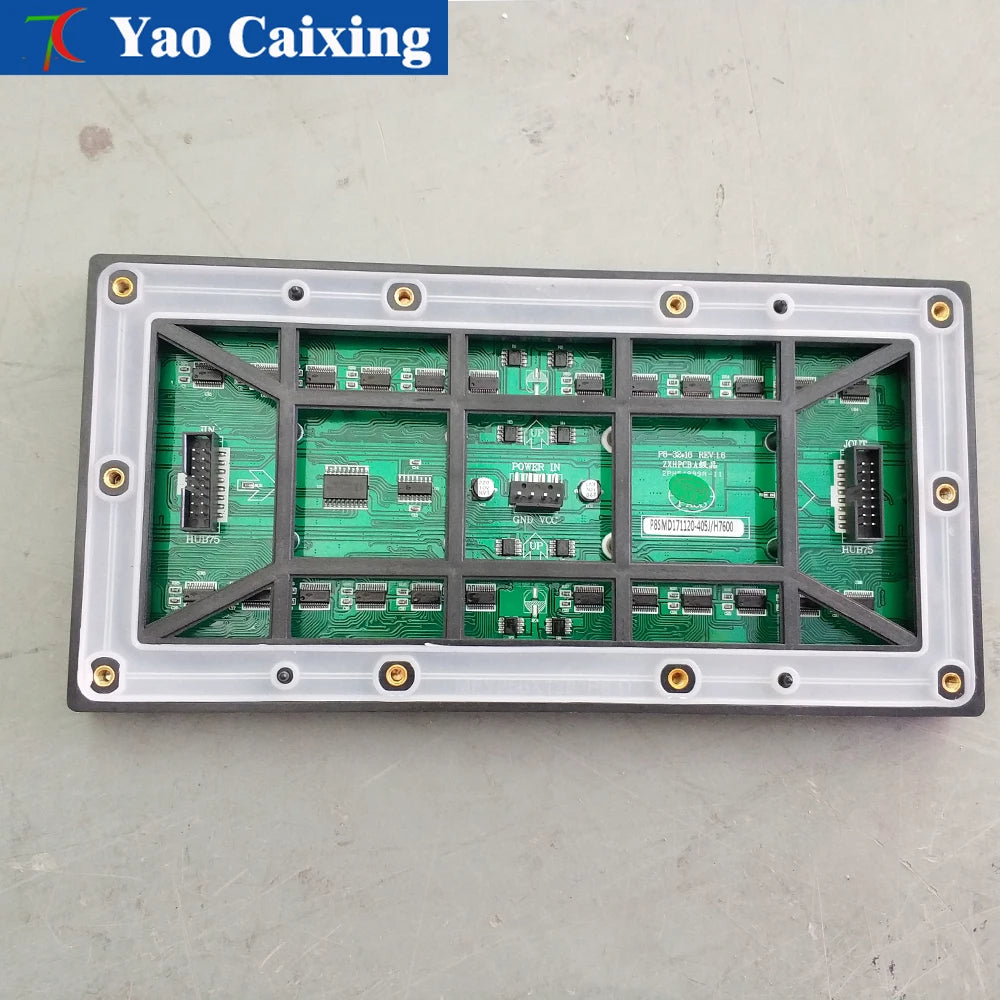

-Modules details





-Full potting to ensure that the module of waterproof performance





-Every module aging more than 72 hours





-From the parts to the finished product, we guarantee to arrive at the destination in the best possible manner



















 -Correct use methods of modules





 -Display installation process,Yao caixing free to provide technical support









We'll try to do better and better in the future









Shenzhen Yao caixing Electronic Co.,LTD

Add: Phoenix Xingye Road no.1 Road 26, 2, Fuyong Town, Shenzhen City,China 518100

TEL: + 86 0755- 36912927
